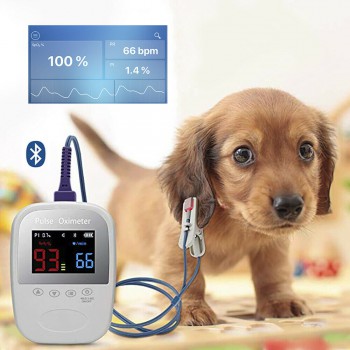

VET Animal Pulse Oximeter Veterinary Ear Clip SpO2 Pulse Rate Waveform

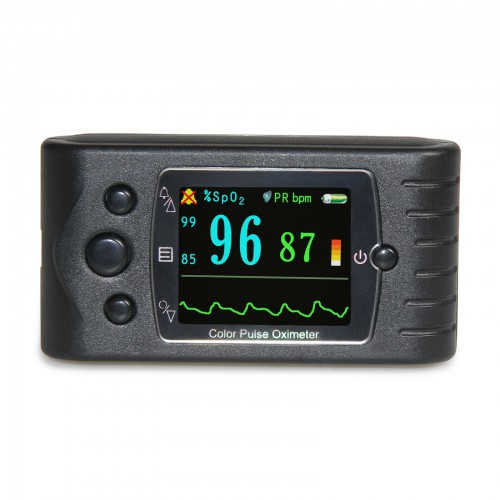

The CMS60C Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology in accordance with Capacity Pulse Scanning & Recording Technology, which can be used to measure human oxygen saturation and pulse rate through finger. The device is suitable for being used in hospital, oxygen bar, community healthcare and physical care in sports, etc. (It can be used before or after exercise, but not recommended to use during exercising).



Small in volume, light in weight and convenient in carrying

Easy to operate, low power consumption

Operation menu for function settings

SpO2 value display

Pulse rate value display, bar graph display

Pulse waveform display

Display direction can be changed

Screen brightness can be changed

Pulse rate sound indication

With measured data overruns limits and low-voltage alarm function, the upper/lower alarm limit can be adjusted

Battery capacity indication

Low-voltage indication: Low-voltage indication appears before working abnormal caused by low voltage.

Data storage function, stored data can be uploaded to computer

Data transmission in real-time

External SpO2 probe



Display mode: 1.77" TFT color screen

Screen resolution: 128*160

SpO2 measuring range: 0%~100% (resolution is 1%)

Accuracy: 70%~100%: ±2%, Below 70% unspecified.

PR measuring range: 30bpm~250bpm (resolution is 1bpm)

Accuracy: ±2bpm or ±2% (whichever is greater)

Measurement performance in weak filling condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2bpm or ±2% (whichever is greater).

Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.

Voltage: DC 3.6V~4.2V

Power supply: 3.7V rechargeable lithium battery × 1

Battery working hour: 26 hours in theoretical

Battery service life: no less than 500 times of charge and discharge

Safety type: Internally powered equipment, Type BF applied part

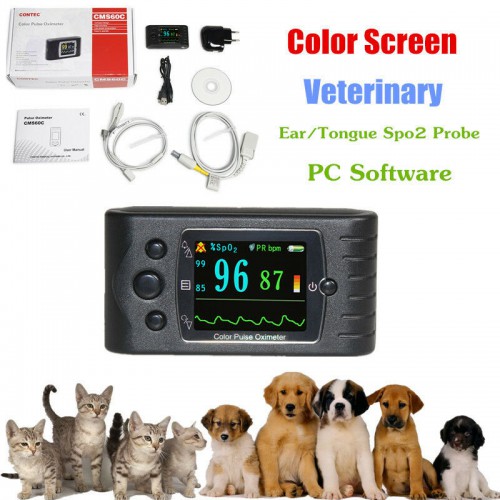

Standard:

◆User Manual 1pc

◆Lithium battery 1pc

◆Power adapter 1pc

◆Data line 1pc

◆CD (PC software) 1pc

◆Vet Probe 1pc



Dimension: 87(L) × 45(W) × 22(H) mm

Weight: about 75g (with one lithium battery)
