Dolphinmed Veterinary Anesthesia Machine Used for Large Animal 1000kg Horse Cow Tiger Pig Vet Anesthesia Machine

Dolphinmed Veterinary Anesthesia Machine Used for Large Animal 1000kg Horse Cow Tiger Pig Vet Anesthesia Machine

This veterinary anesthesia machine is designed for use with Equine, Bovine, Zoology, and other large animal anesthesia.

Feature

It can be used in farm, zoo, forest park, animal research center and so on.

Specification

Inspiration mode: open mode, closed mode, semi-open and semi-closed mode

Tidal Volume:5000-15000ml

Gas source:O2,0.3--0.4Mpa

O2 Flush valve:25L/min--75L/min

Flow meter: high precision O2 flow meter, 0--1L/min--10L/min, O2&N2O or O2&N2O two tubes flow meter is option.

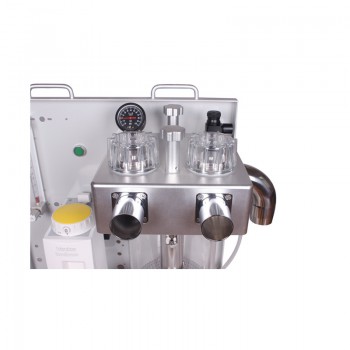

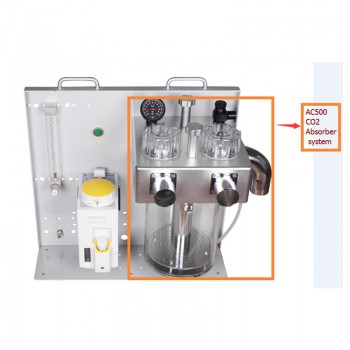

CO2 circle absorber: with soda lime chamber, APL valve, airway pressure gauge, inspiration valve and expiration valve, the inspiration and expiration valve is demo-type and visible.

APL valve:0--60cmH2O, adjust easily

Airway pressure gauge: -20cmH2O--100cmH2O &-2Kpa--10Kpa

Soda lime chamber:8Liter, it is easy to change soda lime and used for over 1000kg animal.

Bains connector: it is used for open breath circuit, connect with Jackson breath circuit or bains breath circuit.

Anesthesia vaporizer: TEC3 vaporizer. Enflurane, Isoflurane,Halothane,Sevoflurane, one vaporizer  with selectatec compatiable mounting bar

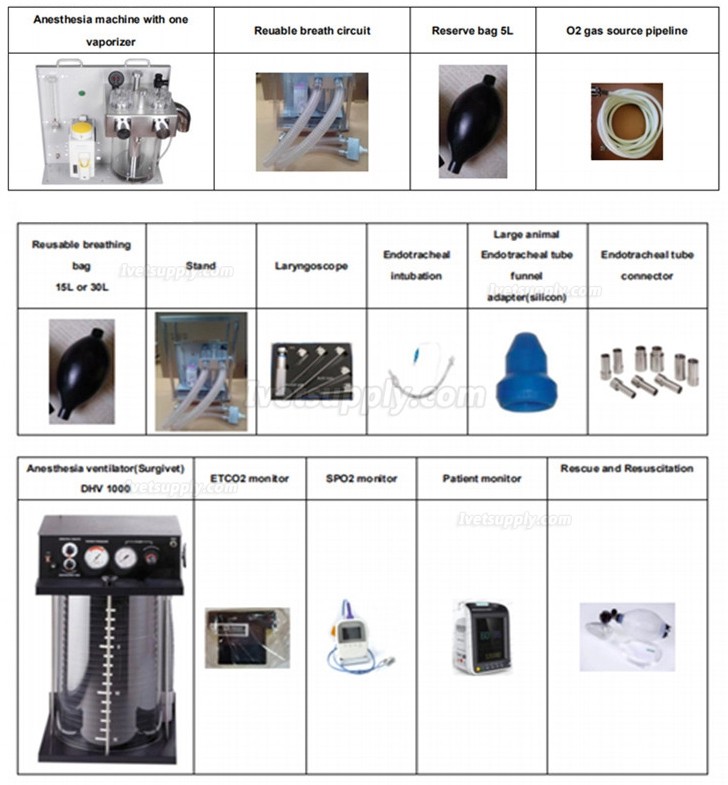

Standard configuration

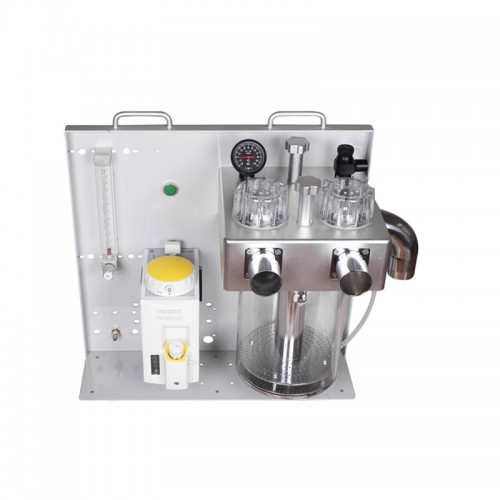

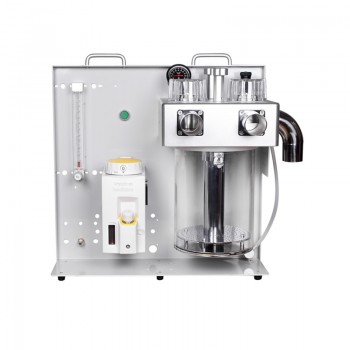

Anesthesia machine with one vaporizer

Reuable breath circuit Reserve bag 5L O2 gas source pipeline

Optional configuration

Reusable breathing bag15L or 30L,Stand,Laryngoscope

Endotracheal intubation,Large animal Endotracheal tube funnel adapter(silicon)

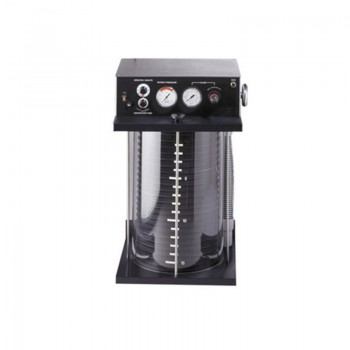

Endotracheal tubeconnector,Anesthesia ventilator(Surgivet)DHV 1000

ETCO2 monitor, SPO2 monitor Patient monitor,Rescue and Resuscitation
