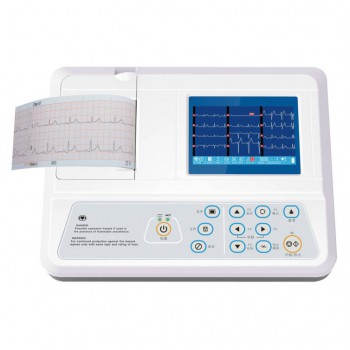

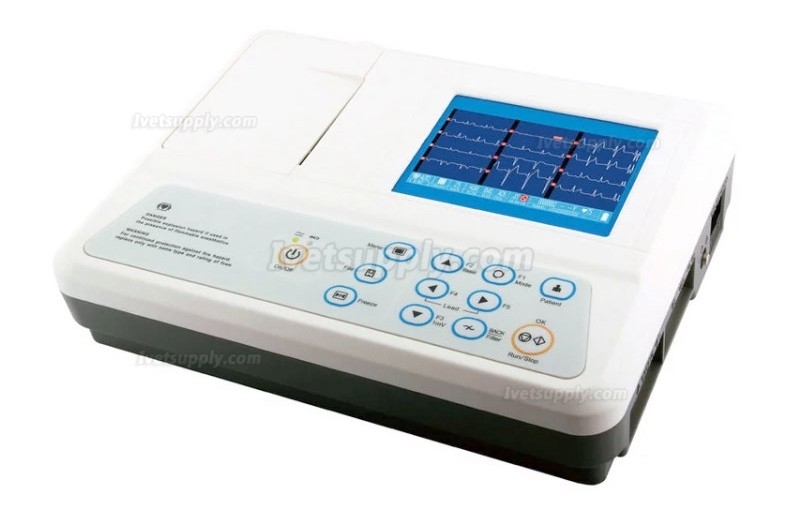

Veterinary Three Channels ECG Machine Automatic Arrythmia Analysis Medical Equipment

Veterinary Three Channels ECG Machine Automatic Arrythmia Analysis Medical Equipment

Features:

1.Portable and delicate design, easy to operate

2.Accurate pulse pace identification function

3.High accuracy digital filter, automatic baseline adjustment

4.Working modes: Manual, Automatic, Arrythmia Analysis, Storage

5.80mm, 3 channel format recording, excellent automatic interpretation

6.320x240 graphic 3.5 inch color LCD to simultaneously display ECG information

7.250 patient cases storage ( SD card storage is optional )

8.Detailed patient information record

9.Freeze function

10.Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Ni-MH battery continuously working for about 3 to 4 hours.

11.USB / Rs232 communication ports support USB storage, laser printer printing and PC ECG software ( Optional )

Monitor size : 3.5 inch colour LCD

Parameters : ECG

warranty : 12 months

Leads : standard 12 leads

Work modes:

Manual, Automatic, Arrythmia Analysis

Voltage : 110-230V

Technical Specifications:

1.Leads: standard 12 leads

2.Patient current leakage: <10μA

3.Lead acquisition:12bit/1000Hz(synchronously 12 leads )

4.Calibrating voltage: 1mV±2%

5.Work mode: Manual, Auto, R-R analysis

6.Voltage tolerance: ≥±500mV

7.Time constant: ≥3.2s

8.Frequency response: 0.05~160Hz(-3db)

9.Input dynamic range:±10Vpp

10.Sensitivity valve: ≤20μV

11.Sensitivity: Auto,2.5, 5, 10, 20,40mm/mV(±3%)

12.Inter-channel Interference: ≤0.5mm

13.Paper speed: 6.25,12.5, 25, 50mm/s(±3%)

14.Filter

   AC filter: 50Hz / 60Hz

  EMG Filter: 25Hz / 45Hz

   Anti-Drift Filter: 0.15Hz (Adaptive)

15.CMMR: ≥100dB (with AC filter)

16.Input Impedance: ≥50MΩ

17.Input circuit current: ≤0.05μA

18.Noise level: <15μVp-p

19.Input circuit: floating; protection circuit against defibrillator effect

20.Recording mode :1ch+, 3ch, 3ch+

.  Default Man.Mode is 3ch format

. Default Auto.Mode is 3ch+ format

21.Display: 3.5 inch colour LCD

22.USB/RS232 is Optional

23.ECG waveform,100 patient save/replay
